Description

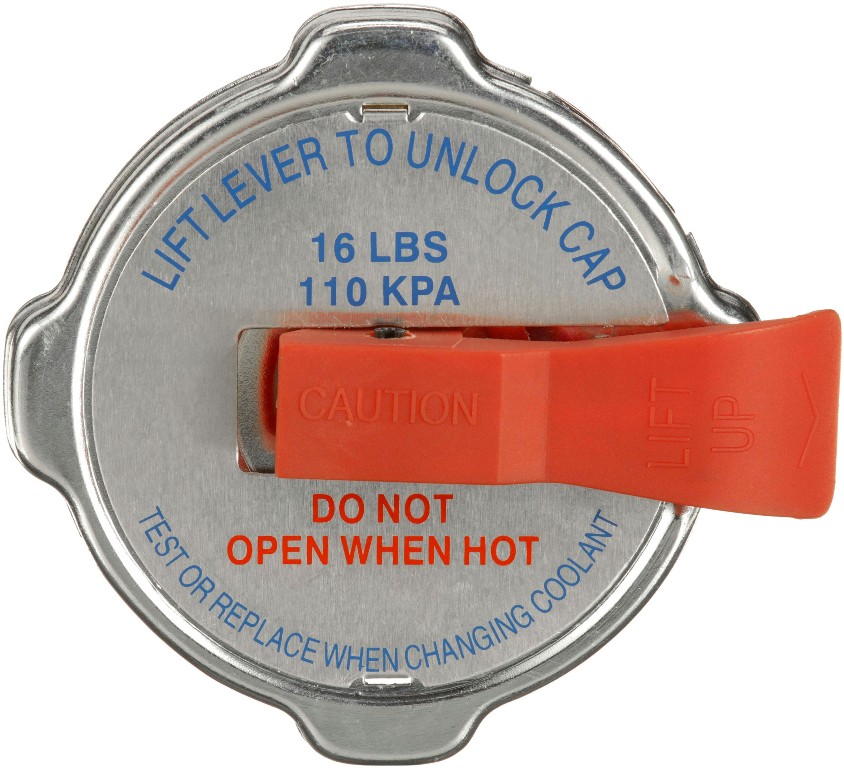

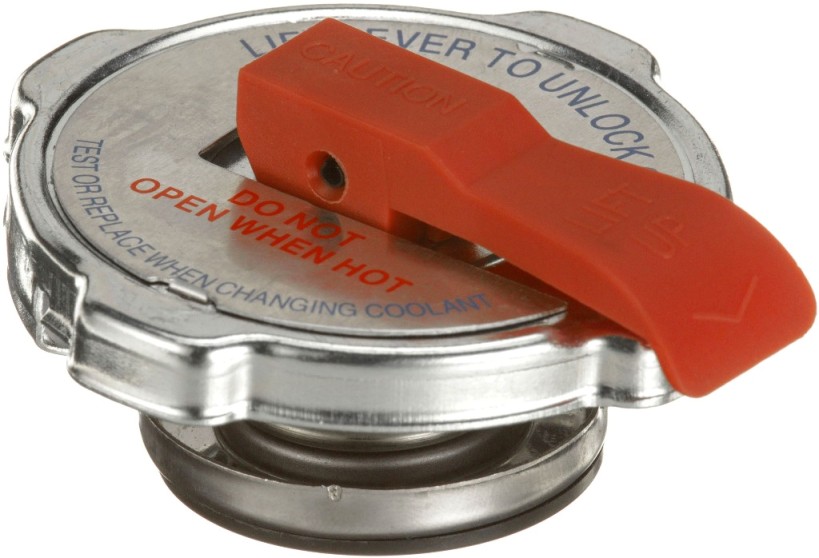

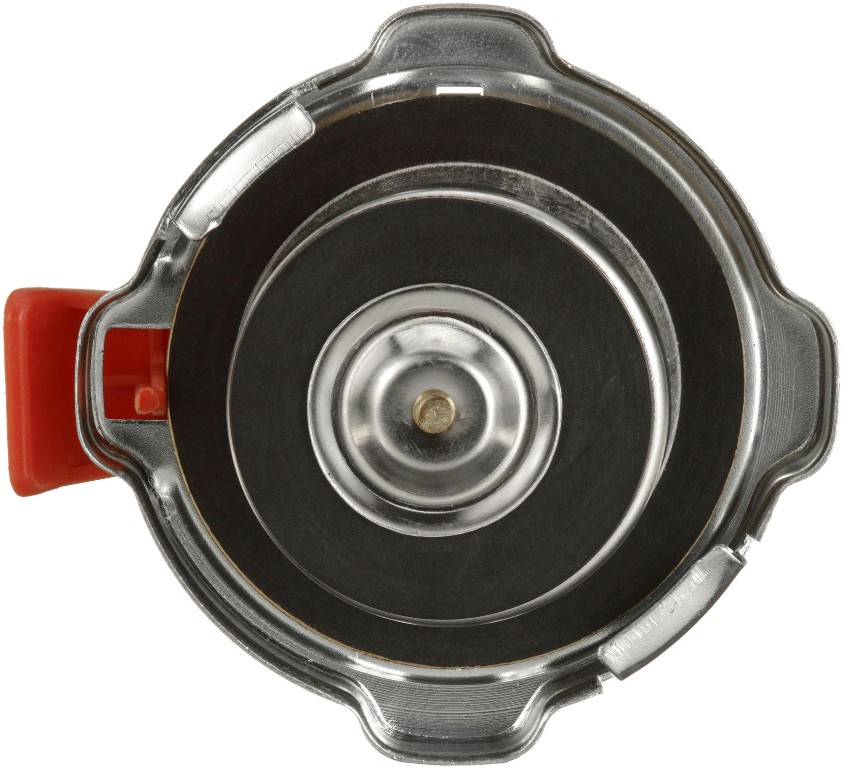

GATES – Safety Release Radiator Cap 16psi #31518G

Specs from the manufacture’s website

• Type      Safety Release Cap
• Coolant Recovery System             Optional System
• Pressure Rating (psi)       16
• SAE Pressure Range (psi)              14-18
• Shell Diameter (in)           2.61
• Cap Depth (in)   1.48
• Filler Neck Depth (in)      .75
• Filler Neck Depth (mm) 19
• Filler Neck Inside Diameter (in)  1.61
• Filler Neck Inside Diameter (mm)              41
• Filler Neck Outside Diameter (in)               2.13
• Filler Neck Outside Diameter (mm)          54
• Width (in)            2.25
• Height (in)           1.48
• Vented Yes

And suits the following corvette’s:

• Corvette 1965 V-8 327
• Corvette 1965 V-8 396
• Corvette 1967 V-8 327
• Corvette 1967 V-8 427
• Corvette 1968 V-8 327
• Corvette 1968 V-8 427
• Corvette 1969 V-8 350
• Corvette 1969 V-8 427
• Corvette 1970 V-8 350
• Corvette 1970 V-8 454
• Corvette 1971 V-8 350
• Corvette 1971 V-8 454
• Corvette 1972 V-8 350
• Corvette 1972 V-8 454
• Corvette 1973 V-8 350
• Corvette 1973 V-8 454
• Corvette 1974 V-8 350
• Corvette 1974 V-8 454
• Corvette 1975 V-8 350
• Corvette 1976 V-8 350
• Corvette 1977 V-8 350
• Corvette 1978 V-8 350
• Corvette 1979 V-8 350
• Corvette 1980 V-8 5.0 L
• Corvette 1980 V-8 5.7 L
• Corvette 1981 V-8 5.7 L
• Corvette 1982 V-8 5.7 L
• Corvette 1985 V-8 5.7 L
• Corvette 1986 V-8 5.7 L
• Corvette 1987 V-8 5.7 L
• Corvette 1988 V-8 5.7 L
• Corvette 1989 V-8 5.7 L
• Corvette 1990 V-8 5.7 L
